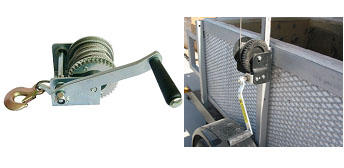

Hand Winch is a towing and hoisting tool with wide application, works by scrolling the winch-barrow, suitable for towing heavy goods. It is light, easy to carry and install. It is made in accordance with Europe standard. It has a good appearance for the zinc plated body surface and wire rope
|
BQS&BQC Series
Product Features
*Used for parallel tow, moving goods, towing boats and ships;
*Widely used for industrial, agricultural operations;
*Suitable for cross country vehicle, motor vehicle for agricultural use, ATV sports cars, yachts, and other special vehicles;
*Self rescue of the vehicle in the snowy land, swamps, deserts, beaches, mud and other harsh mountain environment;
*Pawl-type self-locking device, high security
*Automatic brake device, safer operations;
*When the winch-barrow keep staying, the brake will automatically start
Specification
|
How to work |
|
Model
|
Load (kg)
|
Breaking Force (kg)
|
Gear Ratio
|
Diameter& Length
of Wire Rope
(Φmm*m)
|
|
BQS600
|
250
|
375
|
3.2:1
|
None
|
|
BQC600
|
250
|
375
|
3.2:1
|
4.2*10
|
|
BQC800
|
350
|
525
|
3.2:1
|
4.5*10
|
|
BQC1000
|
450
|
675
|
4.1:1
|
435*10
|
|
BQC2000
|
900
|
1350
|
4:1/8:1
|
5*10
|
|
BQC2500
|
1100
|
1650
|
4:1/8:1
|
5.6*10
|

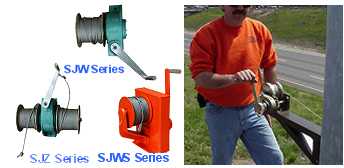

SJW/SJZ Series
|
Product Feature
* Small size, light weight, great lifting, easy operation, safe and durable.
* Used in material ascend/descend and huge lifting project, dragging cargo and equipments.
* Orderly steel wire rope, dependable lifting device.
Application
Widely used in equipment installation at wharf, port, construction site, bridge, metallurgy, mine etc.
Specification
|
 |
|
Model
|
Rated Lifting Weight (kg)
|
Rope Length
(m)
|
|
SJW150
|
150
|
10
|
|
SJW250
|
250
|
10
|
|
SJW500
|
500
|
10
|
|
SJZ100
|
100
|
20
|
|
SJZ150
|
250
|
20
|
|
SJZ500
|
500
|
20
|
