UT803 Autorange Digital Multimeters,Bench-Type is used to measure DC/AC volt, DC/AC current, resistance, capacitance, frequency, temperature(℃/℉), diode, audion, circuit break and etc.
|
Product Feature
*All-functional symbol display, all-process overload protection
*Manual/automatic range change, MAX/MIN measuring
*Data hold, RS232/USB standard software interface.
*Volts-lack display, backlight and auto power off.

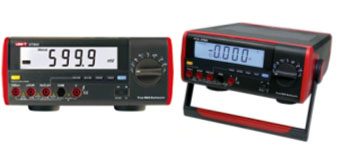

Product Display
|
Accessories and wires attached in the package |
UT803 |
Specification
|
Model
|
UT803
|
|
DC voltage
|
Range
|
600mV/6V/60V/600V/1000V
|
|
Precision
|
±(0.3%+1)
|
|
AC Voltage
|
Range
|
600mV/6V/60V/600V/1000V
|
|
Precision
|
±(0.5%+2)
|
|
DC Current
|
Range
|
600μA/6mA/60mA/600mA/10A
|
|
Precision
|
±(0.5%+1)
|
|
AC Current
|
Range
|
600μA/6mA/60mA/600mA/10A
|
|
Precision
|
±(0.8%+2)
|
|
Resistance
|
Range
|
600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ
|
|
Precision
|
±(0.5%+2)
|
|
Capacitance
|
Range
|
6nF/60nF/600nF/6uF/60uF/600uF/6mF
|
|
Precision
|
±(2%+5)
|
|
Frequency
|
Range
|
10Hz-60MHz
|
|
Precision
|
±(0.1%+3)
|
|
Temperature
|
Range
|
40℃~1000℃/-40℉~1832℉
|
|
Precision
|
±(1%+3)/±(1.5%+5)
|
|
LCD Size(mm)
|
128x28
|
|
Max. Display
|
5999
|
|
Color
|
Red and Grey
|
|
Weight(g)
|
2400
|
|
Size(mm)
|
310x240x105
|
|
Power
|
AC 220V±10%/50Hz or
No.2 battery R14(1.5V ⅹ 6pcs)
|
|
Standard accessories
|
Test Lead, AC220V Power Cord,English Manual, Point Contact, Temperature Probe, Alligator Clip,Multi-Purpose Socket, RS232C Interface Cable, USB Interface Cable, Software |
|
Other function
|
10A fuse、Diode test、Onoff warning、udion test、Min/max mode data hold、RS232 interface、USB interface、Backlight display、All symbol display、Auto power off、Low volts display
|
